$Dto.queryPage/DtoQueryPageBase

$Dto.queryPage/DtoQueryPageBase is used to annotate the Query parameters with paging

Usage of DtoQueryPageBase

DtoQueryPageBase inherits from DtoQueryBase and provides paging-related Query parameters: pageNo, pageSize

1. Create DTO

In VSCode, use the Vona Create/Dto context menu to create a DTO code skeleton:

@Dto()
export class DtoOrderQueryPage {}

2. Inherit DtoQueryPageBase

@Dto()
export class DtoOrderQueryPage extends DtoQueryPageBase {}

DtoQueryPageBase Fields

Since DtoOrderQueryPage inherits from DtoQueryPageBase, it has the following member fields:

Name	Description	Example
columns	List of fields to query	*, id,orderNo,remark, ["id","orderNo","remark"]
where	Query clause	{ "orderNo": { "_include_": "order001" } }
orders	Sorting	orderNo,desc, [["orderNo", "desc"], ["createdAt", "desc"]]
pageNo	Page No	Default: 1
pageSize	Page Size	Default: 20

Annotating Query Parameters

Taking the findMany method of the Order controller as an example, we can annotate the Query parameters:

+ import type { IQueryParams } from 'vona-module-a-orm';
+ import { Arg } from 'vona-module-a-web';

class ControllerOrder extends BeanBase {
  @Web.get('findMany')
  @Api.body(DtoOrderResultPage)
  async findMany(
+   @Arg.queryPro(DtoOrderQueryPage) params: IQueryParams<ModelOrder>,
  ): Promise<DtoOrderResultPage> {
    return this.scope.model.order.selectAndCount(params);
  }
}

• @Arg.queryPro: This Pipe transforms the Query parameter and needs to pass in the parameter DtoOrderQueryPage
• IQueryParams: The data type obtained by Pipe transforming the Query parameter is IQueryParams, and the generic parameter ModelOrder needs to be passed in to match the parameter type of the model.order.selectAndCount method

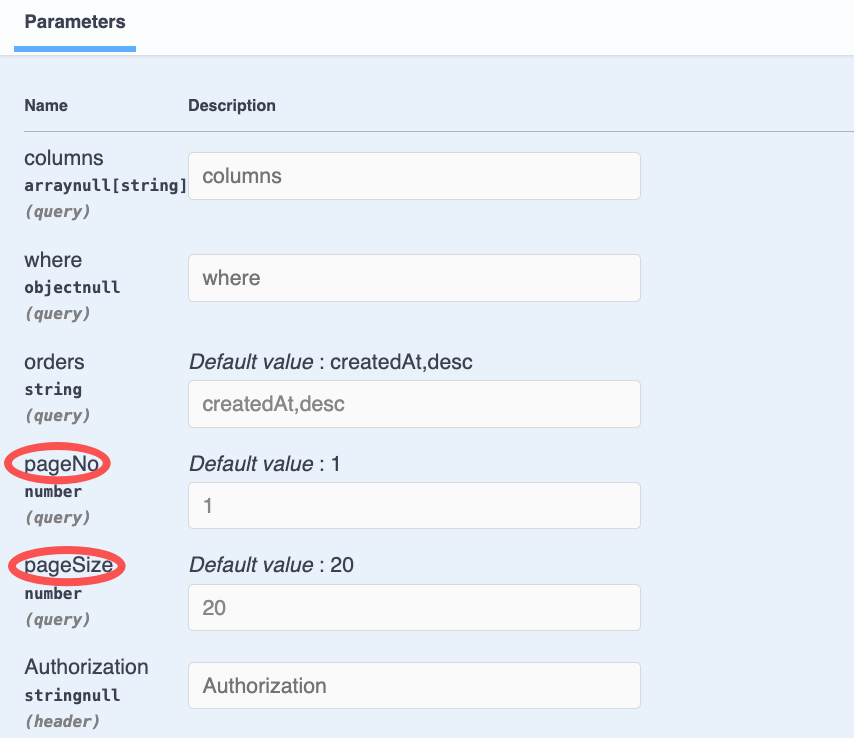

The automatically generated Swagger/Openapi is as follows:

$Dto.queryPage

If you need to add query clause for business fields in DTO, you can use $Dto.queryPage

@Dto()
export class DtoOrderQueryPage
+ extends $Dto.queryPage(EntityOrder, ['orderNo', 'remark']) {}

• $Dto.queryPage: Automatically extract the field orderNo/remark from EntityOrder and then merge it with the DtoQueryPageBase member fields

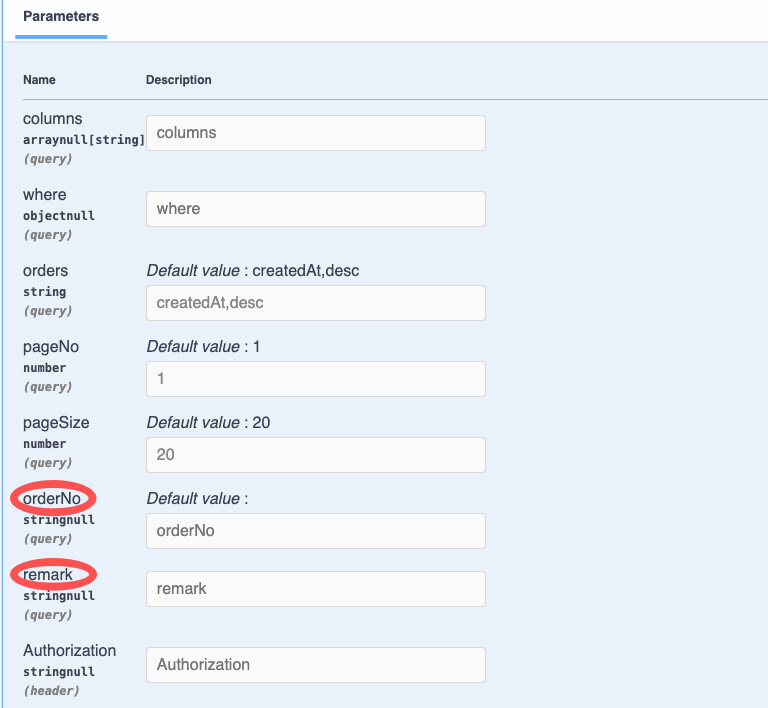

The automatically generated Swagger/Openapi is as follows:

pageSize configuration

1. App Config

The default value of pageSize is 20, which can be modified in App Config:

src/backend/config/config/config.dev.ts

// modules
config.modules = {
  'a-orm': {
    rest: {
      query: {
        pageSize: {
          default: 50,
          max: 200,
        },
      },
    },
  },
};

Name	Description
default	The default value
max	The maxinum value

2. DTO configuration

You can also provide different pageSize configurations for specific DTOs:

@Dto()
export class DtoOrderQueryPage
+ extends $Class.omit($Dto.queryPage(EntityOrder, ['orderNo', 'remark']), ['pageSize']) {
+ @Api.field(z.number().min(1).max(300).default(30))
+ pageSize: number;
}

• $Class.omit: Exclude the pageSize field from the base class to avoid TypeScript errors
• For more information about $Class, see: API: Dto

Or:

@Dto({
+ fields: {
+   pageSize: z.number().min(1).max(300).default(30),
+ },
})
export class DtoOrderQueryPage extends $Dto.queryPage(EntityOrder, ['orderNo', 'remark']) {}

• For more information about fields, see: API: Dto
