Introduction

VonaJS AOP programming includes three capabilities:

1. Controller Aspect: Applies logic to controller methods
2. Internal Aspect: Applies logic to any method of any class within a class
3. External Aspect: Applies logic to any method of any class from the outside without changing the class source code

Controller Aspect

Controller Aspect List

• Middleware
• Guard
• Interceptor
• Pipe
• Filter

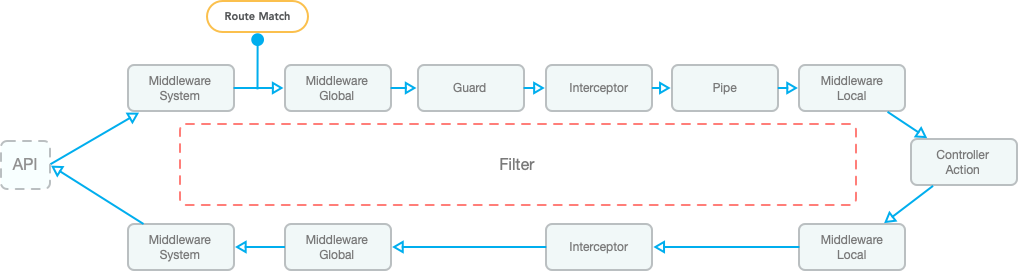

Execution Sequence Diagram

The execution sequence diagram for controller aspects is as follows:

• Onion Model: Middleware and Interceptor support the Onion Model, allowing aspect logic to be executed before and after Controller Action
• Middleware: Three types of Middleware are provided for different execution sequence stages: Middleware System, Middleware Global, and Middleware Local, allowing for more refined aspect logic
• Route Match: Only the Middleware System is executed before route matching; the rest are executed after
• Filter: If an exception is thrown at any stage, Filter will be executed to customize the processing logic of error information and error log

Internal Aspect

Internal aspects provide two mechanisms: AOP Method and Magic Method

1. AOP Method

Implement aspect logic directly on Class Method through decorator

Example: Database Transaction

class ServiceStudent {
+ @Core.transaction()
  async update(id: TableIdentity, student: DtoStudentUpdate) {
    return await this.scope.model.student.updateById(id, student);
  }
}

• @Core.transaction: A decorator implemented through the AOP Method mechanism that can directly provide database transaction capabilities

Example: Logging

class ServiceStudent {
+ @Core.log()
  async update(id: TableIdentity, student: DtoStudentUpdate) {
    return await this.scope.model.student.updateById(id, student);
  }
}

• @Core.log: A decorator implemented using the AOP Method mechanism directly provides logging capabilities

2. Magic Method

Dynamic properties or methods can be implemented through __get__ and __set__ within the Class

Example: Obtaining a model instance

class ServiceStudent {
  async update(id: TableIdentity, student: DtoStudentUpdate) {
+   return await this.scope.model.student.updateById(id, student);
  }
}

• this.scope.model.xxx: Instead of using dependency injection, dependency lookup is used to obtain the model instance directly from the scope object, simplifying the code writing style

Implementation Idea

The system provides a ServiceModelResolver class for dynamic model instance resolution. The code is as follows:

class ServiceModelResolver {
  protected __get__(prop: string) {
    const beanFullName = `${this[SymbolModuleScope]}.model.${prop}`;
    return this.bean._getBean(beanFullName as any);
  }
}

1. When this.scope.model.student is called, the __get__ method is automatically executed, passing the prop: 'student' parameter
2. The prop parameter is combined with the current module name to form beanFullName
3. The model instance is retrieved from the global container using beanFullName and returned to the caller

External Aspect

Using the update method of the ServiceStudent class as an example, we implement logging capabilities through the external aspect:

import { Aop } from 'vona-module-a-aspect';

@Aop({ match: 'demo-student.service.student' })
class AopLog {
  async update(_args: Parameters<any>, next: Function, _receiver: any) {
    const timeBegin = Date.now();
    const res = await next();
    const timeEnd = Date.now();
    console.log('time: ', timeEnd - timeBegin);
    return res;
  }
}

• @Aop: This decorator is used to implement the external aspect
• match: This option is used to associate the AopLog class with the ServiceStudent class, which beanFullName is demo-student.service.student
• update: Provides the update method with the same name to implement custom logic
