Global Middleware

Create Middleware

For example, we create a Global Middleware logger in the module demo-student

1. Cli command

$ vona :create:bean middleware logger --module=demo-student --boilerplate=global

2. Menu command

TIP

Context Menu - [Module Path]: Vona Aspect/Middleware Global

Middleware Definition

export interface IMiddlewareOptionsLogger extends IDecoratorMiddlewareOptionsGlobal {}

@Middleware<IMiddlewareOptionsLogger>({ global: true })
export class MiddlewareLogger extends BeanBase implements IMiddlewareExecute {
  async execute(_options: IMiddlewareOptionsLogger, next: Next) {
    const timeBegin = Date.now();
    const res = await next();
    const timeEnd = Date.now();
    console.log('time: ', timeEnd - timeBegin);
    return res;
  }
}

• IMiddlewareOptionsLogger: Defines middleware parameters
• execute: Outputs execution time

Using Middleware

Unlike local middleware, the system automatically loads global middlewares and makes them effective

Middleware Parameters

You can define parameters for middleware, allowing for more flexible configuration of middleware logic

For example, define the prefix parameter for the logger middleware to control the output format

1. Defining parameter types

export interface IMiddlewareOptionsLogger extends IDecoratorMiddlewareOptionsGlobal {
+ prefix: string;
}

2. Providing default values ​​for parameters

@Middleware<IMiddlewareOptionsLogger>({
  global: true,
+ prefix: 'time',
})

3. Using Parameters

export interface IMiddlewareOptionsLogger extends IDecoratorMiddlewareOptionsGlobal {
  prefix: string;
}

@Middleware<IMiddlewareOptionsLogger>({
  global: true,
  prefix: 'time',
})
class MiddlewareLogger {
  async execute(options: IMiddlewareOptionsLogger, next: Next) {
    const timeBegin = Date.now();
    const res = await next();
    const timeEnd = Date.now();
-   console.log('time: ', timeEnd - timeBegin);
+   console.log(`${options.prefix}: `, timeEnd - timeBegin);
    return res;
  }
}

4. Specify parameters when using

You can specify global middleware parameters for a specific API

class ControllerStudent {
  @Web.get()
+ @Aspect.middlewareGlobal('demo-student:logger', { prefix: 'elapsed' })
  async findMany() {}
}

• When using middleware, just provide the parameter value directly

5. App Config

Middleware parameters can be configured in App Config

src/backend/config/config/config.ts

// onions
config.onions = {
  middleware: {
    'demo-student:logger': {
      prefix: 'elapsed',
    },
  },
};

6. Parameters precedence

Specify parameters when using > App Config > Default values

Middleware Order

Since global middlewares ard loaded and enabled by default, VonaJS provides two parameters to control the order in which middleware is loaded

1. dependencies

For example, the system has a built-in global middleware a-core:gate, and we hope that the loading order is as follows: a-core:gate > Current

@Middleware({
  global: true,
+ dependencies: 'a-core:gate',
  prefix: 'time',
})
class MiddlewareLogger {}

2. dependents

The order of dependents is just the opposite of dependencies. We hope that the loading order is as follows: Current > a-core:gate

@Middleware({
  global: true,
+ dependents: 'a-core:gate',
  prefix: 'time',
})
class MiddlewareLogger {}

Middleware Enable/Disable

You can control enable/disable of global middleware for certain APIs

1. Enable

• Disable for an API

class ControllerStudent {
  @Web.get()
+ @Aspect.middlewareGlobal('demo-student:logger', { enable: false })
  async findMany() {}
}

• Disable for all APIs

src/backend/config/config/config.ts

// onions
config.onions = {
  middleware: {
    'demo-student:logger': {
+     enable: false,
    },
  },
};

2. Meta

Allows global middleware to take effect in a specified operating environment

Name	Type	Description
flavor	string|string[]	See: Runtime Environments and Flavors
mode	string|string[]	See: Runtime Environments and Flavors
instanceName	string|string[]	See: Multi-Instance/Multi-Tenancy
host	string|string[]	Host

• Example

@Middleware({
  global: true,
+ meta: {
+   flavor: 'normal',
+   mode: 'dev',
+   instanceName: '',
+   host: 'localhost:7102',
+ },
})
class MiddlewareLogger {}

3. match/ignore

You can enable/disable global middleware for some specific APIs

Name	Type	Description
match	string|regexp|(string|regexp)[]	For which APIs to enable
ignore	string|regexp|(string|regexp)[]	For which APIs to disable

Inspect

You can directly inspect the currently effective global middleware list in the Controller action

class ControllerStudent {
  @Web.get()
  async findMany() {
+   this.bean.onion.middleware.inspect();
  }
}

• this.bean.onion: Get the global Service instance onion
• .middleware: Get the Service instance related to the middleware
• .inspect: Output the currently effective global middleware list

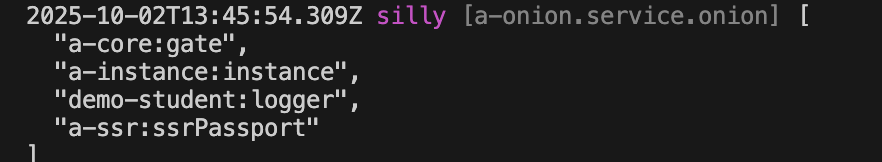

When accessing the findMany API, the current list of global middleware in effect will be automatically output to the console, as shown below:
